Ergo Screen, Tall Tinted

Maximum comfort and protection as well as a visual upgrade for the GS. This screen has been designed to lean more towards the rider to achieve the best possible rider protection. The availability of two height options ensure a suitable screen for any size rider.

The Facts:

• Reduced load on head, upper body and arms.
• The lower area is very wide (transition to hand guards) to offer best protection for hands and arms.
• The wide “flaps” on the upper screen reduce wind pressure to head and upper body.
• Unique manufacturing process allows complex shape for best performance.
• Equalizes the negative pressure and reduces turbulence and buffeting
• Available in two heights
• The design closes the gap to the head lamp and gives the bike an overall impressive appearance.
• Tough and clear fuel resistant Lexan material
• Available are “transparent” or “smoke” tinted versions for each height.
• Easy and fast attachment to the bike.
• TÜV approved

Height, as measured from the top of the headlight are as follows:

• “Low” Screen (360 mm/~14.0” high)

• “High” Screen (400 mm/~15.5” high)

For additional dimensions and specifications, please see the More Views tab.

(For reference, the original screen height is 260 mm/10.2” for F 650 and 305 mm/12” for the F 800)

For riders up to 1.75 m/~5.7 ft. tall we recommend the “Low” versions.
For riders taller than 1.75 m/~5.7 ft. the “High” screens provide the best results.

More Views (Click on the images below to enlarge)

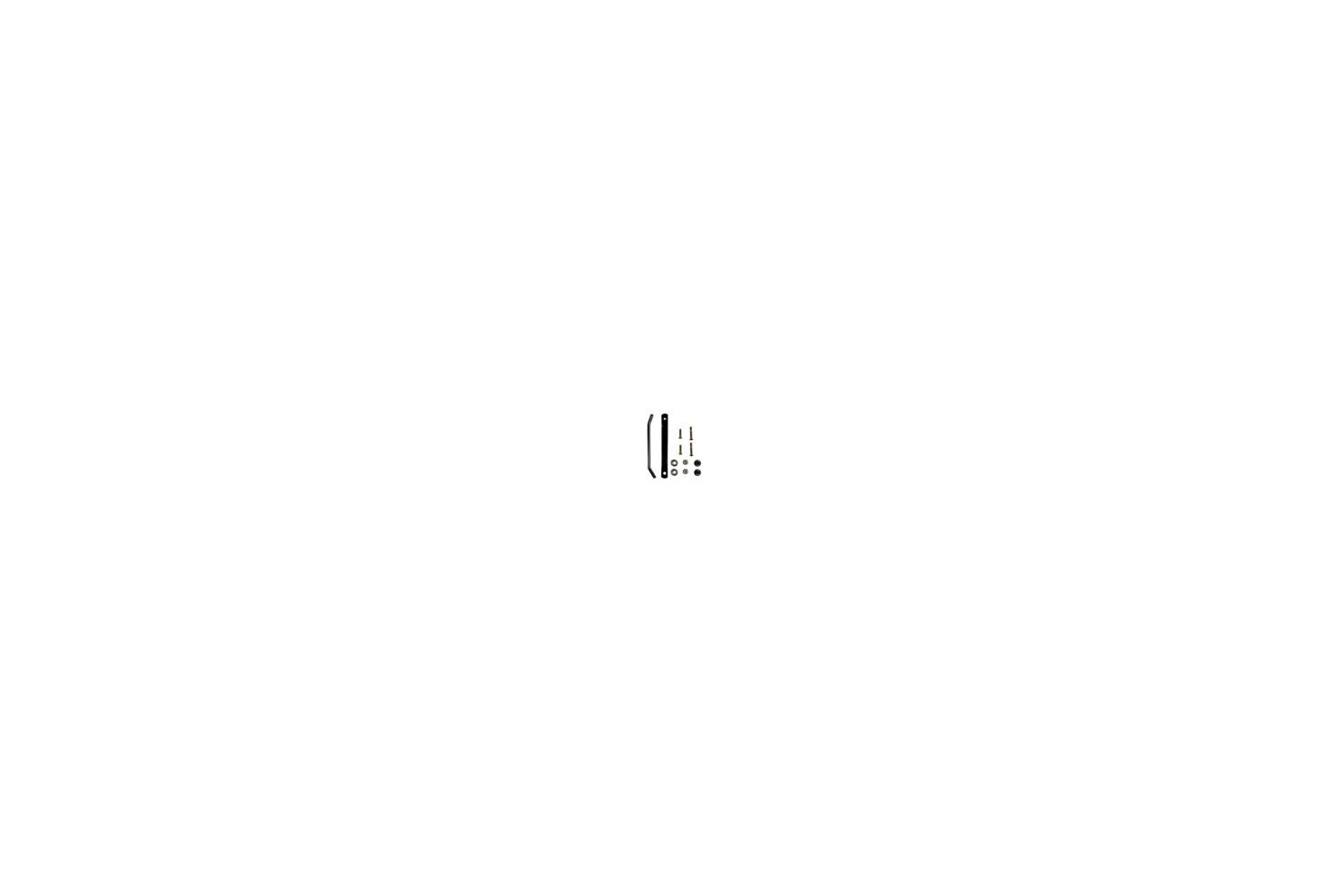

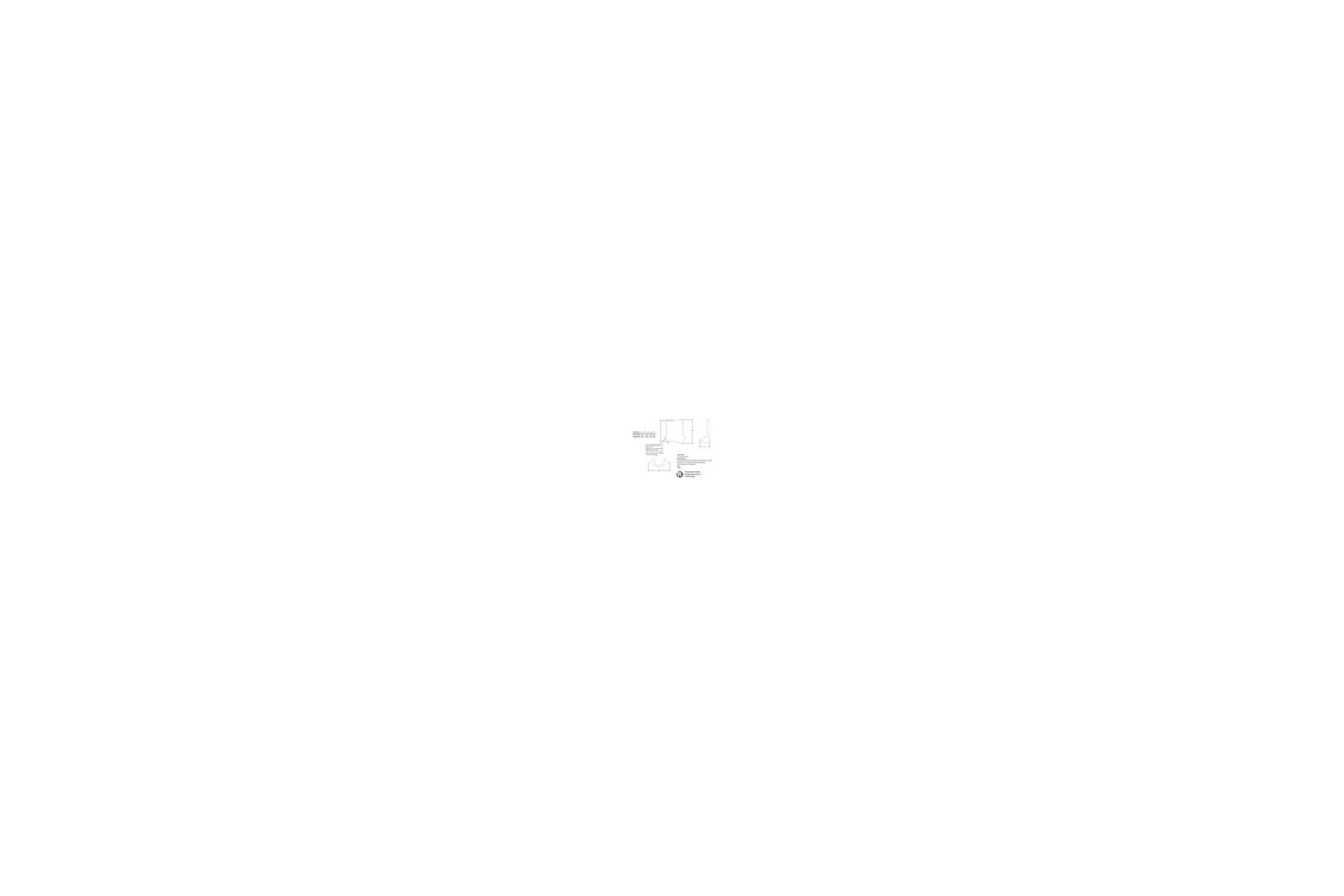

Dimensions	Mounting Hardware

• F650GS
• F800GS

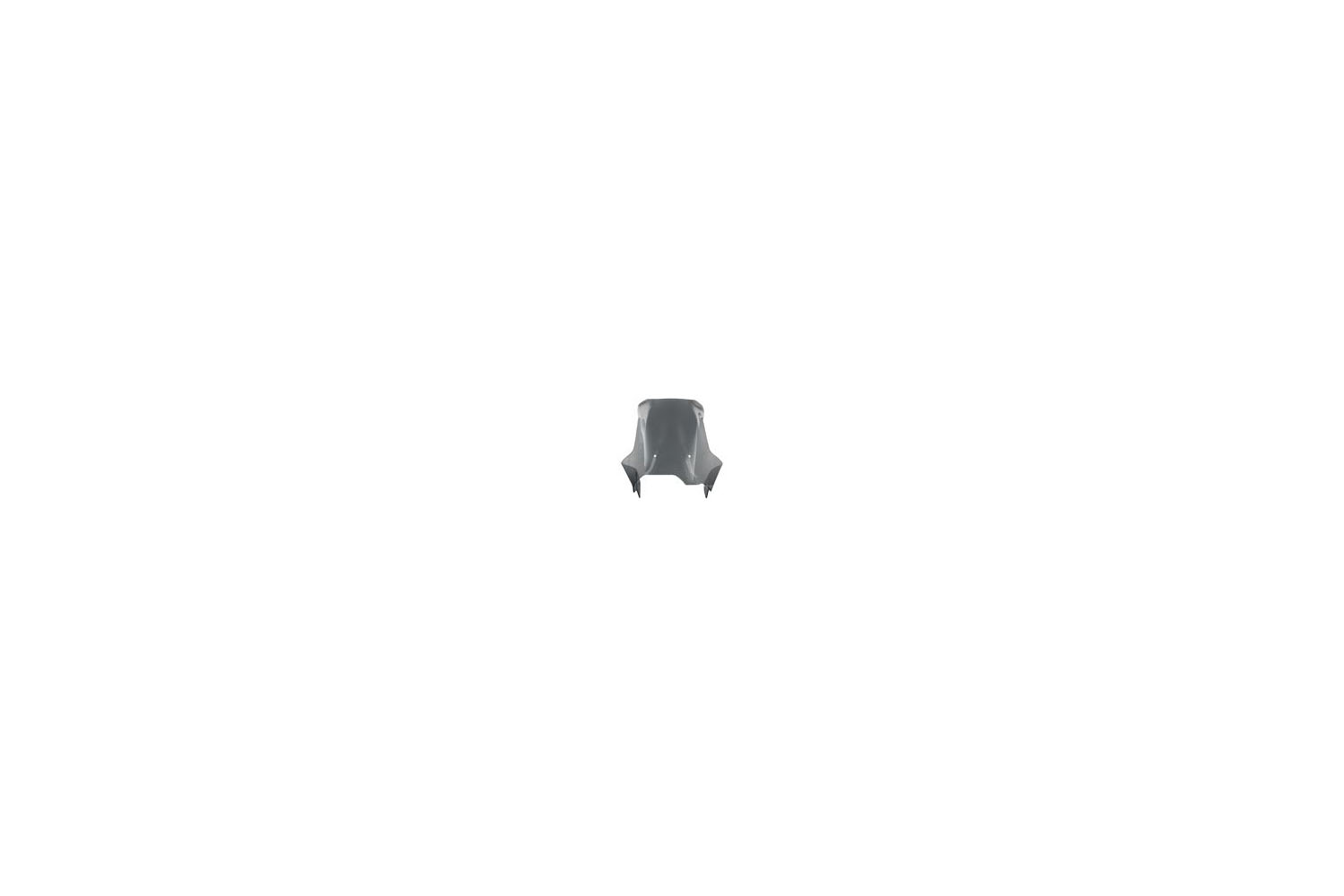

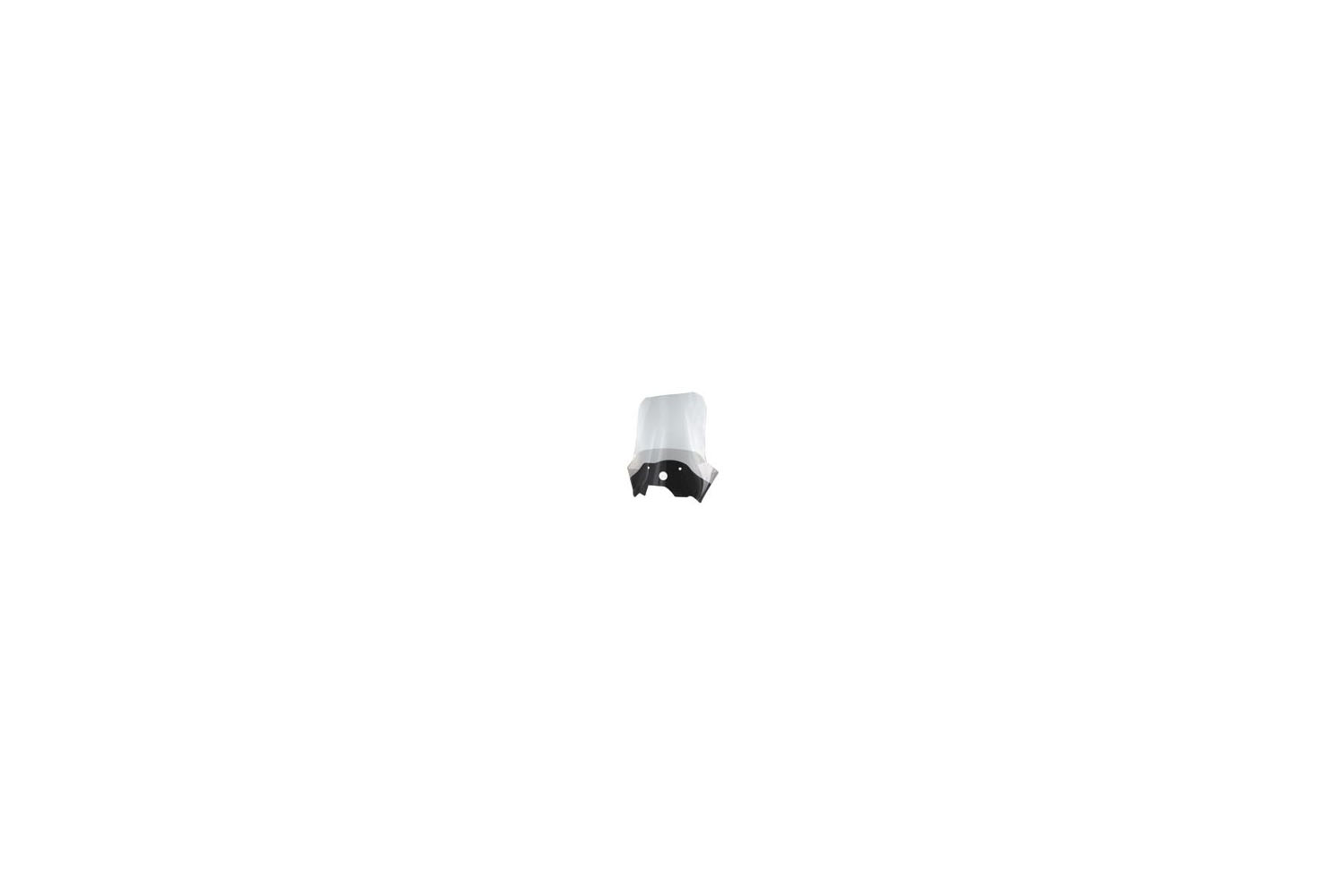

Ergo Screen, Clear Tall Part Number: 8110229 Price: $219.00	Ergo Screen, Low Clear Part Number: 8110278 Price: $199.00	Ergo Screen, Low Tinted Part Number: 8110424 Price: $199.00
