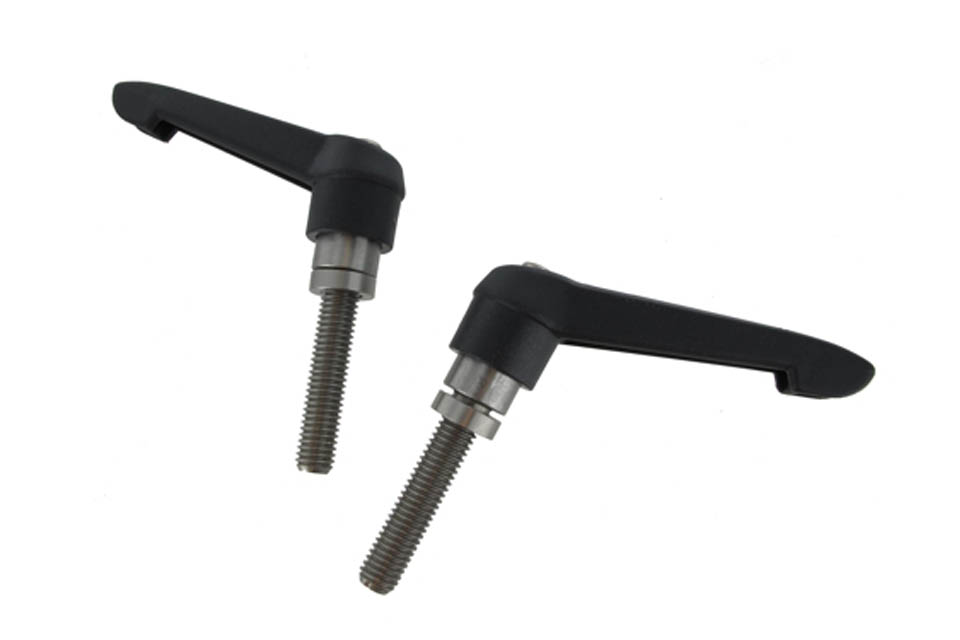

Handlebar Quick-Adjust

When riding off road, better control and best results can be achieved when standing on the pegs. When standing however, your arms reach the bars at entirely different angles than when sitting and therefore, the levers should ideally be repositioned for optimum comfort and control. The best tip, and one well known by experienced GS riders is to simply rotate the bars up and forward when traversing the technical off road sections and then rotate them back again when returning to the paved or gravel road. This trick does two things: it effectively raises the bars so that you don’t need to bend over as much and also positions the levers down, so they can more easily be reached while standing. As good an idea as this may be, it normally still involves the use of tools and stopping to dig out the proper wrench. With the Wunderlich Quick Adjusters, you’ll be able to rotate your handlebar quickly and easily with only a brief break in the action. Once installed, you’ll be able to loosen you handlebar clamps, adjust your bars and tighten them again, without the use of additional tools.

The handles have an internal spring and ratchet mechanism. By slightly lifting the handle against the spring, the lever can be positioned in one of 22 positions. This allows you to rotate the lever position and achieve the ideal point of leverage and also to position the levers to your liking after adjustment has been completed.

Please note this important ordering information! There are three lengths available. If your bike has bar risers made by someone other than Wunderlich, Remove one of the bolts where you intend to install the quick adjust and measure the length from the base of the head to the tip and order the the closest match based on the information provided here.. If you have Wunderlich handlebar risers or none at all, please make your choice based on the following information:

35mm Fits the following bikes without bar risers:

• F 650
• F 650 ST
• F 650 CS
• G 650 GS from 2011
• R 1100 GS
• R 1150 GS + Adventure
• R 1200 GS + Adventure up to 2007

and the following bikes, with OR without bar risers
• R 1200 GS + Adventure from 2008
• F 650 GS Twin
• F 800 GS

65mm
Fits the following bikes with 35mm bar risers:
• F 650
• F 650 ST
• F 650 CS
• F 650 GS
• G 650 GS
• R 1100 GS
• R 1150 GS
• R 1200 GS + Adventure up to 2007

Please Also Note:
The quick adjusters are Not compatible if you have the BMW Navigator installed using the BMW mounting system and are also Not compatible with the Wunderlich ‘Vario’ handlebar Risers.

More Views (Click on the images below to enlarge)

Adjustment	Installed	F800 GS

This item fits the following BMW bike models:

• G650GS2011on
• F650
• F650ST
• F650CS
• R80GS
• R100GS
• R1100GS
• R1150GS
• R1150GSADV
• R1200GS
• R1200GSADV
• Sertao
