Part # 26850301-302

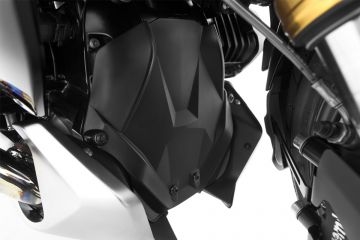

Wunderlich Extreme Skid Plate
Available in: Silver or Black

The functional design and constructive integration of our »EXTREME« engine protection protect the engine and the manifold. It molds itself so tightly to the aggregate that the frontal area of attack is minimized, and the ground and lean angle freedom remain almost entirely unchanged. This protection avoids unpleasant levering or jamming of the vehicle over terrain, whether from branches, rocks, or anything else. Openings ensure that water picked up during river crossings can flow out freely again. Additionally, we have ensured that you have good, unrestricted access during maintenance works: For example, an opening is integrated for unhindered engine oil drainage. The aluminum engine protection is corrosion-resistant, and impact-decoupling attachment elements absorb the generated forces and vibrations. We manufacture »EXTREME« engine protection using the challenging and advanced hydroforming manufacturing process. This allows us to realize complex component forms and geometries (especially asymmetrical ones, in which we can achieve lower weight and simultaneously high component rigidities and mechanical stability through optimization of the material thickness. The result is a resistant, weight and form-optimized engine protection unit that molds so tightly and organically to the aggregate that the design principle of "form follows function" becomes self-evident.

Details:

• High-strength powder-coated aluminum engine protection molded in a hydro-forming process
• Manufacturing process guarantees maximum stiffness and best possible protection
• Protects engine, manifold and catalytic converter
• Maximum ground clearance
• The design means snagging is impossible

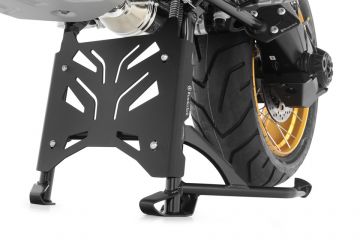

• Goes perfectly with our center stand protection plate
• Additional carrier for complete impact decoupling between protector and engine housing
• Maintenance operations possible with no dismantling
• With inspection drill hole for oil drain screw
• Complete fitting kit

Technical data

• Material: Aluminum, high-strength
• Dimensions (LxWxH): 585 x 394 x 178 mm
• Thickness: 3 mm
• Made in Germany

---

Please Note: Exceptions to model/year fitment

Model:	Starting:	Ending:	Notes:
R1250 GS	2019	+	Does not fit Option 719 Front Engine Cover
R1250 GS Adventure	2019	+	Does not fit Option 719 Front Engine Cover

---
