Part # BM303
Ohlins - Rear Shock

Ohlins - Rear Shock

Important ordering information: When you order Ohlins suspension from Wunderlich America, you will not be receiving an off the shelf product. Each shock absorber will be especially built just for you by Ohlins factory trained technicians, based on the information that you provide. The Ohlins modular construction system and the world-wide cooperation between Ohlins and Wunderlich make this possible.

Answering all of the questions above will allow us to select the proper components in assembling your shock absorber. If needed, You will be able to provide additional information in the comments section later on in the checkout process.

Please enter your body weight without gear and specify Pounds or Kilograms.

Ohlins Shock Absorber Type S46 HR1C1S

This is the ultimate shock absorbers for your F800 GS. This amazing shock absorber features adjustable compression and rebound damping, remote preload adjustment and ride height adjustment.

You will notice a drastic improvement in ride quality with this shock absorber. There is simply no comparison between the Ohlins suspension and the stock suspension. The radical improvement will be immediately noticeable and your BMW will become the ultimate fun machine.

The facts

• Ohlins quality and performance
• Ohlins finishes and design, developed with racing experience
• 46 mm diameter, Teflon guided piston
• Monotube high pressure gas type, hose mounted external reservoir
• Adjustable compression and rebound damping
• Stepless preload adjustment
• Custom built to your specifications
• Completely rebuildable and serviceable
• Maintenance free pivot bearings
• Made in Sweden, assembled in USA

Adjustment Features

	R1 - Adjustable rebound damping. Adjuster wheel on end-eye
	S - Hose mounted hydraulic spring preload adjuster
	C1 - Adjustable compression damping. Adjuster on reservoir

The Ohlins modular construction system makes it possible to completely disassemble the shock for routine servicing and repairs. Should servicing become necessary, you will have like new performance restored and for this reason, the shock will certainly last for the lifetime of the motorcycle.

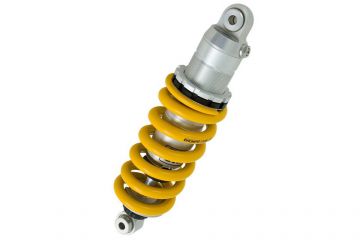

NOTE: Your Ohlins shock absorber may look different from what is pictured. It could be longer or shorter depending upon the model application. The shock reservoir could be angled differently in order to fit your bike as well. It just goes to show how much custom work Ohlins puts into making their product work on each and every bike.
