Name: Wunderlich Engine Protection Bars, F450 GS, Black
Brand: Wunderlich
SKU: 40611002
Price: 412.95 USD
Availability: OutOfStock

Description Reviews Accessories Bike Fitment

Description

Wunderlich Engine Protection Bars, F450 GS, Black

With this Wunderlich engine protection bar, the perfect compromise between maximum protection and low weight was the focus of development. Its compact component geometry reliably protects not only the engine, but also indirectly the water pump, clutch and alternator as well as their housing covers, without impairing ground clearance or lean angle clearance. The two-part engine protection bar fits closely to the bike and gains additional stability and rigidity through its specific structure - while at the same time offering optimised component weight. The bars for the right and left sides are each securely bolted to two selected existing mounting points. In the event of a fall or tip-over, the forces acting on the bike are optimally distributed via the protection bar structure to the load-bearing mounting points, preventing force and torque peaks and effectively reducing material stress. In combination with the tank protection bar (40612002), it forms a comprehensive, proven all-round protection concept, increases passive safety and contributes to riding enjoyment.

The engine protection bar structure is made from a combination of 25 mm and 22 mm precision steel tubing. The tube segments are formed on CNC tube bending machines and then cleanly welded. Visually, the protection bar integrates into the motorcycle’s design, blends into its distinctive appearance and underlines the adventure look in a high-quality way.

Function and product features

The Wunderlich engine protection bar offers the perfect compromise between maximum protection and low weight
Perfect, effective protection for engine and units
Subtle, perfectly integrated design that nevertheless follows the contours of the engine
Maximum protection thanks to the compact, rigidly designed tubular construction and selected materials
Reduction of force and torque peaks by evenly distributing them across two mounting points on each side of the vehicle
No impairment of ground clearance or lean angle clearance
High-quality workmanship and use of the best materials
Reduces the risk of costly damage
The engine protection bar does not need to be removed for maintenance work

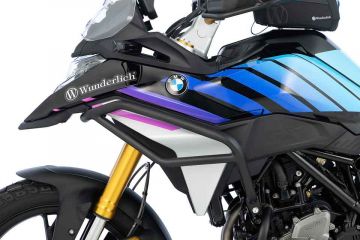

In combination with the tank protection bar (40612002), it forms a comprehensive protection concept
Plug & Play fit: uncomplicated installation including mounting material and detailed installation instructions

Technical data

Material: High-quality precision steel tubing
Tube diameter: 25 mm main tube, 22 mm cross brace
Color: Matt black with fine texture– perfectly matching the Wunderlich tank protection bar
